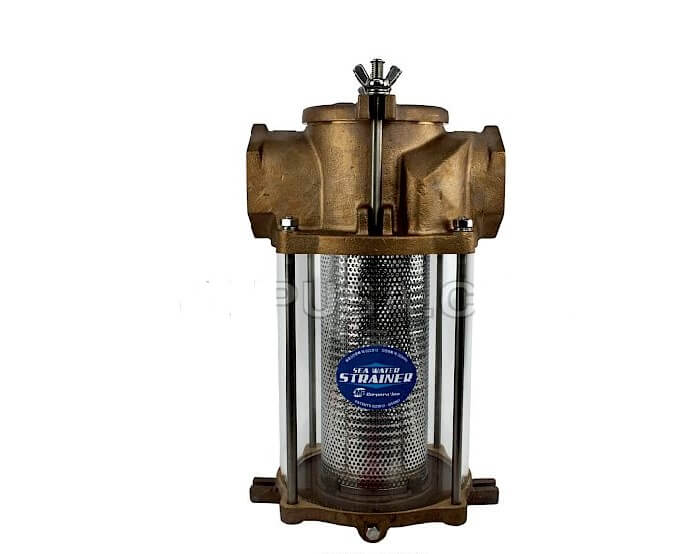

JPR-ST7020 JMP Marine Seawater Filter - ST Series 3" NPT Ports



Product Information & Specs:
Inlet / Outlet Port Size: 3" NPT Pipe
Top Casting: Bronze
Bottom Casting: Bronze
Basket: Stainless
Basket Filter Replacement p/n: FIL000502 (2mm)
Anode Replacement p/n: ZEN000101
Seal: O-Ring
Size (A X B X C): 260mm x 445mm x 275mm

  • A = Top Width / Dia
  • B = Height
  • C = Bottom Width / Dia

Cylinder (Dia X H): 210mm x 250mm
Weight (Approx):  36.30 LBS / 16.50 KG

Peformance Table - Flow Rate
Bar500rpm1000rpm1800rpm2000rpm
0175 L/Min325 L/Min591 L/Min651 L/Min
1155 L/Min277 L/Min566 L/Min591 L/Min
2115 L/Min228 L/Min482 L/Min542 L/Min
333 L/Min116 L/Min351 L/Min394 L/Min
Max3.2 bar3.6 bar4.2 bar--

Product Features:

  • Robust Bronze Casting
  • Robust Stainless with Chrome Plated Filter Baskets
  • Easy Installation
  • Easy Maintenance and Cleaning
  • Protects Your Pumps and Engines
  • Transparent and Strong Cylinder
  • O-Rings Provide Better Sealing under High Pressure Applications
  • Zinc Bar
  • Wingnut
  • Center Rods
  • Air Cap
